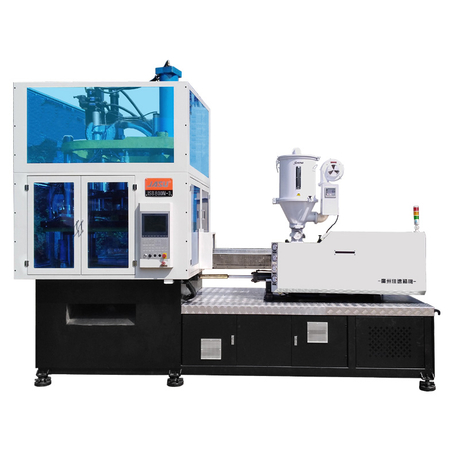

JASU 1-step Wholesale Medicine Bottle Injection Stretch Blow Molding Machine Supplier
JASU single stage fully automatic injection stretch blow molding machine covers about 10 square meters area.
Firstly, raw materials are dried, fed, stored, plasticized and injected into mold to form performs. After opening mold, the preforms quickly reaches to blow molding station and stretch blow molded. Finished bottles are grasped by robot and transferred to conveyor belt. The rear end can be connected to subsequent processes such as leak detection, labeling, filling, and packaging.
Entire production cycle time is about 13 seconds. Simple operation, energy saving and environmental protection, stable quality and high cost performance. This machine can also produce TRITAN\PC\PETG\PS\PP products, just need to change the mold or adjust the process.
SINGLE STAGE/ONE STEP INJECTION STRETCH BLOW MOLDING MACHINE ISB 1100AN-3
Injection part | Technical items | parameter |
Screw Diameter | 50 | |
Theoretical injection capacity | 481cm3 | |
Injection Pressure | 176Mpa | |
Max.hydraulic Pressure | 140Kg/cm | |
(PS)The actual Injection quantity | 452g(ps)/16oz | |
Screw Stroke | 245mm | |
CHILLER Model No | One set of 8HP, One set of 10HP | |
Clamping part | Blow Clamping Force | 150KN |
Clamp Tonnage | 600KN | |
Wheel Diameter | 1100mm | |
Open vertical mode trip | 570mm | |
Closure height of blow mold | 550mm | |
Closure height of injection mold | 550mm | |
MAX. Height | 220mm | |
blowing part | Maximum blowing pressure | 30Kg |
Exhaust volume required | 1M⊃3; | |
Maximum volume of product that can be blown | 4L | |
Maximum shape of product that can be blown | Diameter 250MM | |
mold part | Injection core material | S136 heat treatment to HRC48-50 |
Injection cavity material | S136 heat treatment to HRC48-50 | |
Hot runner brand | Dongguan Maijia(Runner technology ), cooperate for 11 years | |
blow mold material | S136 heat treatment to HRC48-50 | |
injection mold lifetime | 2 million times | |
blow mold lifetime | 2 million times | |
Others | machine is suitable for kinds of raw material | PET, PETG ,PS ,PCTG ,PC, TRITAN (BPA free) , PMMA,AS |
production cycle time | 1/2-cavity(15-18 seconds) 4/6/8-cavity (12-14 seconds) 10/12-cavity(11-13 seconds) | |
pneumatic parts Brand | AirTAC | |
Electronic parts brand | Schneider | |
Servo Motor brand | Phase (Italy) | |
Servo Motor voltage | 22Kw+22KW | |
MAX.Pump Pressure | 16Mpa | |
Oil pump motor brand | Eckerle (Germany) | |
Oil pump motor | Shooting table use Dandun Brand | |
Electric power | 12.2Kw | |
Tank Volume | 420L | |
（LXWxH) Dimension of machine | 4.5m*1.95m*3.4m | |
:Machine Weight | 9000kg | |
Main Vulnerable parts | Heating ring | |
Pneumatic valve | ||
rubber ring |
CONFIGURATIONS BRAND OF MACHINE ISB 1100AN-3
Configuration name | Brand LOGO | Brand Name | Origin |
Oil Pump | | Eckerle | Germany |
Servo Motor for Shooting Table | | Phase | Italy |
Hydraulic Valve | | Yuken | Japan/China |
Sealing Parts | | SealTech | China |
Pneumatic Parts | | AirTAC | Taiwan (China) |
Main Electronic Parts | | Schneider | France |
Servo Motor for Turntable | | Inovance | China |
Controller (PC) | | JASU | Taiwan (China) |
Gear Reducer | | SESAME | Taiwan (China) |
Shooting Table | | Dandun | China |
JASU One -Step Injection Stretch Blow Molding Machine advantages are as follows:
1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed
6. Injection: Hot runner and temperature control device are standard configuration. Only change mold for making a new product; Stretch Blow:
Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;Product Release: Equipped with a standard ejector.
We also provide product and mold design,mold manufacture
Real photos of finished products
We provide after sales service all around the world
Poland, Brazil ,Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Africa, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
We provide the best reasonable quotation for each project
Q1: All of your products are made by yourself or compacted via purchasing from others?
A1: JASU have independent technical team who focus on making machines and moulds, all the products are made by our technical team.
Q2: What is the ability of your factory?
A2: About injection stretch blow molding machine, we can product more than 30 sets machine per month
Q3: Do you have any technical supports about your products?
A3: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.
Q4: Do you have any other service about your products?
A4: We have a lot of experience on making complete "Turn-Key" projects and specifications for our clients. Also we have a fixed service system
Pre-Sales Service
* Inquiry and consulting support.
* Free product design.
* Visit our Factory.
Warranty
* The machine and mold guarantee for one year with repair/ free replacement of defective parts.
* Spare parts of machine components, mold components and tools are shipped along with the machine.
After-Sales Service
* JASU wants to make sure you are getting the very best out of the machine and mold. After delivery, we will send our engineer to your plant to train your staff how to use the machine well, until we get approval by the customer.
* Remote assistance to help you solve problems in case of machine system failure.
